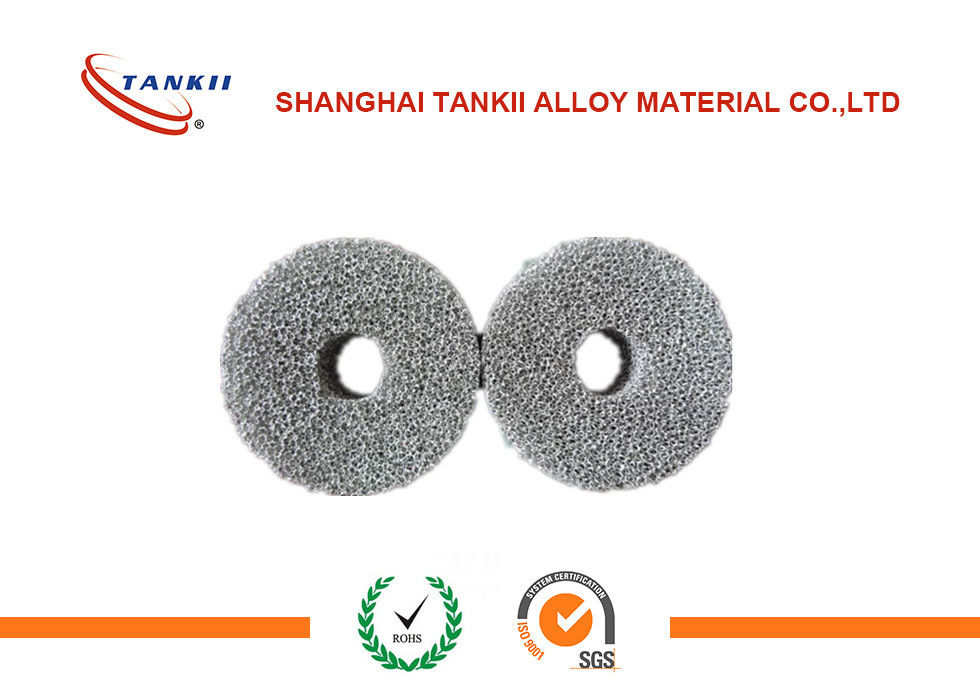

Porous High Strength Nickel Metal Foam Uesd for SOFC Electrode Relay Fedders

جزئیات محصول

محل منبع: شانگهای، چین

نام تجاری: TANKII

گواهی: ISO 9001:2008

شماره مدل: نیک سی دی

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 10 کیلوگرم

قیمت: To negotiate

جزئیات بسته بندی: کویل، کویل، کارتن، مورد تخته سه لا با فیلم پلاستیکی مطابق با نیاز مشتری

زمان تحویل: 7-15 روز

شرایط پرداخت: اعتبارات اسنادی T/T، وسترن یونیون، پی پال

قابلیت ارائه: 20 تن + ماه

بهترین قیمت را دریافت کنید
اکنون تماس بگیرید
مشخصات
برجسته:

nickel foil,nickel 200 strip

,

nickel 200 strip

درجه:
فوم نیکل قوی بالا
مزایای استفاده:
ساختار سوراخ منحصر به فرد، قدرت کشش خوب
PPI:
60-130 گرم در متر مربع
تراکم سطح:
400-2000
قطر بینی:
40٪ -95٪
دیافراگم:
0.1mm-10mm
درجه:
فوم نیکل قوی بالا
مزایای استفاده:
ساختار سوراخ منحصر به فرد، قدرت کشش خوب
PPI:
60-130 گرم در متر مربع
تراکم سطح:
400-2000
قطر بینی:
40٪ -95٪
دیافراگم:
0.1mm-10mm
توضیحات
Porous High Strength Nickel Metal Foam Uesd for SOFC Electrode Relay Fedders

Porous High Strength Nickel Metal Foam Uesd for SOFC Electrode Relay Fedders



1.Detailed Information:



Nickel Foam Industrial Application- high purity nickel foam produced in a wide porosity range (~70% to 98%) and based on the structure of reticulated polymer foam. nickel foam are suitable porous three-dimensional anodes for the oxidation of organic substrates. Metal foams are metal cellular structures containing a large volume fraction of gas-filled pores. They are a relatively new class of materials, which has been developed for applications in lightweight structures. They offer low densities and, due to their high stiffness to weight ratio, they show potential for energy absorption and mechanical damping. There are two types of metal foams, open cell metal foam, where the pores do interconnect, and closed cell metal foams with sealed pores. Nickel foam possesses unique features such as exceptional uniformity, light weight, high porosity, intrinsic strength, corrosion resistance, and good electrical and thermal conductivity.



Electrochemical cells:

The interest of using metallic foams linked to a classical plane plate is to improve the performance of the electrochemical cell by increasing the electrode surface area. Moreover, for some industrial applications it is possible to use the cell without a membrane. In the proposed configuration, the working electrodes consist of metallic foam linked to a plane plate and the auxiliary electrode is simply a plane plate. The imbalance between the surface areas of working and auxiliary electrodes allows operation with a single hydraulic circuit. This paper, focuses on the study of residence time distribution and pressure drop in order to compare the flow behavior with that in a classical configuration.



Other opportunities:

Owing to its uniform 3-D structure with custom porosity, nickel foam may find applications as a filter material. Its magnetic properties may make it suitable as a magnetic flux conductor for handling magnetic particles in a fluid. Other applications may include hydrogen storage medium, heat exchanger medium, and even in arts owing to its unique shaping capabilities, wide porosity range and environmental stability.

Nickel Foam Industrial can be used as filter material, processing of magnetic particles in the fluid magnetic conductor. Other applications include applications in hydrogen storage media, heat exchange medium.

Nickel Foam Industrial operation at present development situation is good, the enterprise is gradually to the industrialization, large-scale development. Nickel foam is a kind of excellent sound absorption material, sound absorption coefficient is higher in the high frequency; through the design of sound absorption structures can improve the sound absorption property in low frequency. Nickel foam is one of the manufactures of nickel cadmium battery and hydrogen nickel battery electrode materials for the best. Through the test developed by electrodepositing process technology for preparing Nickel foam. The base material is open celled foams and porous by chemical plating, vacuum plating, and leaching of conductive adhesive three methods can produce conductive layer, the nickel pre plating can be in sulfate nickel plating solution in nickel plating thickness general, after calcinations, reduction and annealing process can get nickel foam industrial application with excellent performance.



Nickel Foam is a low density permeable material that has a very high porosity with typically 75-95% of the volume consisting of void spaces. Nickel Foam has a wide variety of applications in heat exchangers, energy absorption, flow diffusion, lightweight optics and is used as a filter material for gas and liquid.

Marketech supplies high quality nickel foam for rechargeable battery applications. Our plates have proven to be excellent electrode substrates for Ni-Cd and Ni-H rechargeable batteries and hydrogen storage units.



Nickel Foam Industrial Application- high purity nickel foam produced in a wide porosity range (~70% to 98%) and based on the structure of reticulated polymer foam. nickel foam are suitable porous three-dimensional anodes for the oxidation of organic substrates. Metal foams are metal cellular structures containing a large volume fraction of gas-filled pores. They are a relatively new class of materials, which has been developed for applications in lightweight structures. They offer low densities and, due to their high stiffness to weight ratio, they show potential for energy absorption and mechanical damping. There are two types of metal foams, open cell metal foam, where the pores do interconnect, and closed cell metal foams with sealed pores. Nickel foam possesses unique features such as exceptional uniformity, light weight, high porosity, intrinsic strength, corrosion resistance, and good electrical and thermal conductivity.



This product is mainly used for the manufacture of plates for button-type Ni-MH/Ni-CD batteries. In addition, it can also be used in filtration, catalyst carriers, damping materials, electromagnetic shielding materials and other fields.

Product Specifications & Technical Data Sheet:
Project production specifications
Chip foam nickel
Number of holes (PPI): 60~120 (±5~10)
Surface density (g/m2): 400~2000 (±30~200)
Thickness (mm): 2.6~12.0 (±0.05)
Length / width size (mm): 70 ≤ length / width ≤ 960 (± 0.5)



2. Nickel Information

Nickel is a chemical element with symbol Ni and atomic number 28. It is a silvery-white lustrous metal with a slight golden tinge. Nickel belongs to the transition metals and is hard and ductile. Pure nickel, powdered to maximize the reactive surface area, shows a significant chemical activity, but larger pieces are slow to react with air under standard conditions because an oxide layer forms on the surface and prevents further corrosion (passivation). Even so, pure native nickel is found in Earth's crust only in tiny amounts, usually in ultramafic rocks, and in the interiors of larger nickel-iron meteorites that were not exposed to oxygen when outside Earth's atmosphere.

Meteoric nickel is found in combination with iron, a reflection of the origin of those elements as major end products of supernova nucleosynthesis. An iron–nickel mixture is thought to compose Earth's inner core.



Principal Caracteres:



Nickel Foam,
Thickness:0.9mm, Bulk density:0.62g.cm-3, Porosity:93%, Pores/cm:20, Purity:99.5%

Nickel Foam,
Thickness:1.6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:20, Purity:99.5%

Nickel Foam,
Thickness:6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:4, Purity:99.5%

Nickel Foam,
Thickness:6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:8, Purity:99.5%

Nickel Foam,
Thickness:6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:16, Purity:99.5%



3. Main Application



Molten carbonate fuel cells typically operate at temperatures between 550 and 700 ° C, and foamed nickel can be an electrocatalyst for molten carbonate fuel cells. Nickel foam can be used for bipolar plate modifying materials for proton exchange membrane production cells (PEMFC), electrode relay feeders for solid oxide fuel cells (SOFC), and electrode materials for electrolysis (as in water electrolytic environments). The increased surface area can also be used to generate hydrogen and syngas for fuel cells.

Porous High Strength Nickel Metal Foam Uesd for  SOFC Electrode Relay Fedders 0Porous High Strength Nickel Metal Foam Uesd for  SOFC Electrode Relay Fedders 1
