جزئیات محصول
محل منبع: چین
نام تجاری: TANKII
گواهی: ISO9001
شماره مدل: 0Cr21Al6Nb
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: 20 کیلوگرم
قیمت: negotiation
جزئیات بسته بندی: روی قرقره ، در سیم پیچ
زمان تحویل: 5-10 روز
شرایط پرداخت: L / C ، T / T ، Western Union
قابلیت ارائه: 20 ، 000 کیلوگرم در ماه

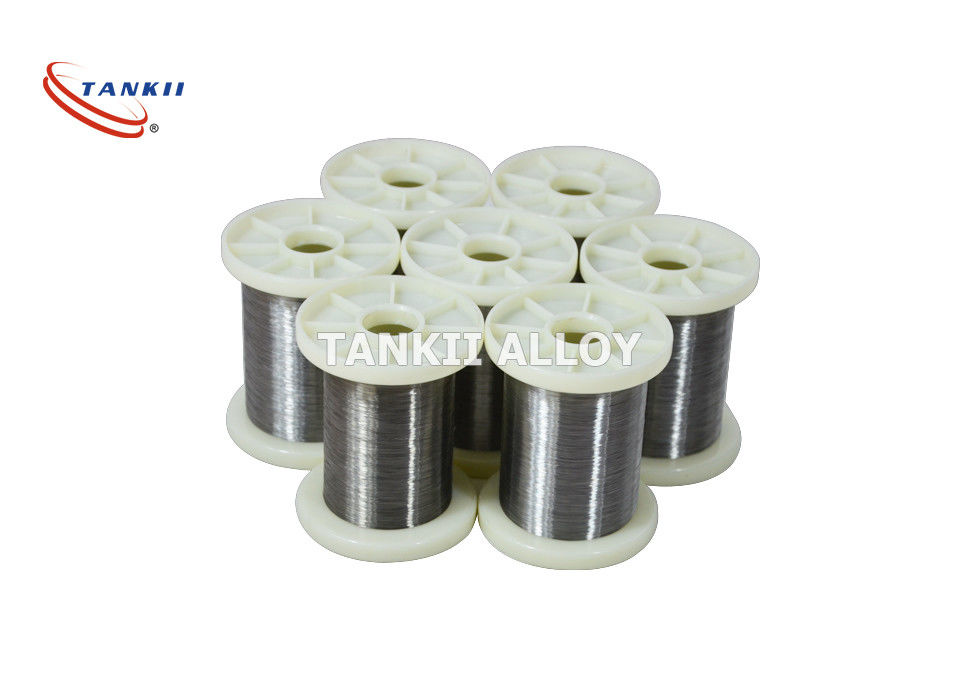

Industrial Furnace 0Cr21Al6Nb Fecral Alloy Resistance Heater Wire
0Cr21Al6Nb
Ni-Cr: Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr25Ni20 etc.
Nichrome,a non-magnetic alloy of nickel and chromium, is commonly used to make resistance wire because it has a high resistivity and resistance to oxidation at high temperatures.
FeCrAl: 1Cr13AI4, 0Cr19AI2, 0Cr15AI5, 0Cr20AI5, 0Cr25AI5, 0Cr21AI6 Nb,OCr27Al7Mo2
FeCrAl, a family of iron-chromium-aluminum alloys used in a wide range of resistance and high-temperature applications is also used in the form of resistance wires.
Size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
The FeCrAl 0Cr21Al6Nb Electric Heating Wire Mesh with the characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray devic
2.Characteristics & Properties:
1) The highest working temperature up to 1250 degree.
2) Longer working life,and better technical properties
3) Higher surface load.
4) Higher resistivity.
5) Lower density.
6) Free from oxide debris
0Cr21Al6Nb
Chemical Content, %
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
|
Max |
||||||||||
|
0.05 |
0.025 |
0.020 |
0.50 |
≤0.6 |
21.0-23.0 |
≤0.60 |
5.0-7.0 |
Balance |
- |
|
Mechanical Properties
|
Max Continuous Service Temperature: Resisivity 20℃: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1350℃ 1.45+/-0.07ohm mm2/m 7.1g/cm3 46.1 KJ/m·h·℃ 16.0×10-6/℃ (20℃~1000℃) 1510℃ Min 12% Ferrite magnetic |
Temperature Factor of Electrical Resistivity
|
20℃ |
100℃ |
200℃ |
300℃ |
400℃ |
500℃ |
600℃ |
|
1.000 |
0.997 |
0.996 |
0.994 |
0.991 |
0.990 |
0.990 |
|
|
||||||
|
700℃ |
800℃ |
900℃ |
1000℃ |
1100℃ |
1200℃ |
1300℃ |
|
0.990 |
0.990 |
0.990 |
0.990 |
0.990 |
0.990 |
0.990 |
