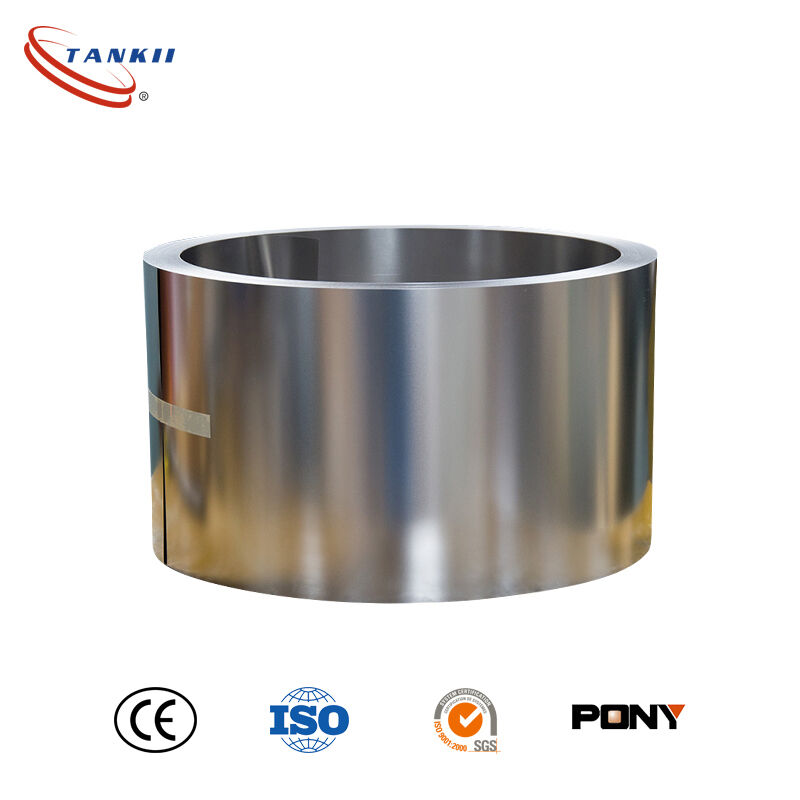

1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core

Name: 1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1K101
Price: 35.00 USD
Availability: InStock

جزئیات محصول

محل منبع: چین

نام تجاری: TANKII

گواهی: ISO9001

شماره مدل: 1K101

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 10 کیلوگرم

قیمت: قابل مذاکره

جزئیات بسته بندی: بسته بندی مقوایی

زمان تحویل: 7-20 روز

شرایط پرداخت: T/T

قابلیت ارائه: 500 کیلوگرم در ماه

بهترین قیمت را دریافت کنید

اکنون تماس بگیرید

مشخصات

توضیحات

مشخصات

برجسته کردن:

مواد:	آلیاژ نانو کریستالی بر پایه آهن	درجه:	1K101
ضخامت:	0.025 - 0.035 میلی متر	عرض:	5-300 میلی متر
القاء اشباع:	≥1.20 T	نفوذپذیری:	بالا
برنامه:	هسته ترانسفورماتور فعلی

مواد:	آلیاژ نانو کریستالی بر پایه آهن
درجه:	1K101
ضخامت:	0.025 - 0.035 میلی متر
عرض:	5-300 میلی متر
القاء اشباع:	≥1.20 T
نفوذپذیری:	بالا
برنامه:	هسته ترانسفورماتور فعلی

توضیحات

1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core

Product Description

Product Name	1K101 Nanocrystalline Ribbon 0.025mm Soft Magnetic Alloy Strip
Customized support	OEM, ODM
Place of Origin	China
Brand Name	Tankii

Product Introduction:

1K101 nanocrystalline ribbon is a Fe-based soft magnetic alloy manufactured by rapid solidification technology. With a thickness of 0.025 mm, it offers high permeability, low core loss, high saturation flux density and excellent thermal stability. The material is widely used for manufacturing nanocrystalline transformer cores, current transformer cores, current sensors, common mode chokes, EMI suppression components and other high-performance magnetic devices. Custom widths and slit sizes are available according to customer requirements.

Applications:
The product is mainly used to replace silicon steel sheet and used in many ways, such as: different power of frequency distribution transformers, power factor correction inductors, small transformers, high-power rectangular iron core, the output energy storage filter inductors, saturable reactor, anti-jamming filter inductorand IF transformer iron core. The working frequency range of the product is from 50Hz to 10kHz. When it is used as the iron core materials of a high-power switching power reactor , the using frequencies of the product can be up to 50kHz.

Physical Properties
Saturation magnetic flux density Bs	1.5 T
Curie temperature Tc	410ºC
Crystallization temperature Tx	535ºC
Saturationmagnetostriction coefficientλs	27×10-6
Density d	7.18 (g/cm3)
Resistivity ρ	137µΩ·cm
Continuous operating temperature	150ºC
